Trench type compost turner offers an efficient solution for managing large volumes of organic waste. These machines are widely used in fertilizer manufacturing due to their strong adaptability, low energy use, and excellent fermentation results. Understanding their structure, working process, and compostable materials helps oeganic fertilizer producers make smarter equipment investments.
Trench type compost turner offers an efficient solution for managing large volumes of organic waste. These machines are widely used in fertilizer manufacturing due to their strong adaptability, low energy use, and excellent fermentation results. Understanding their structure, working process, and compostable materials helps oeganic fertilizer producers make smarter equipment investments.
What Materials Can You Compost by Trench Type Compost Turner?
თhe trench type compost machines can decompose and ferment a wide range of organic waste. პრაქტიკაში, these materials include livestock manure, agricultural waste, municipal waste, industrial waste, and by-products from food processing, და ა.შ. გარდა ამისა, this groove type composting technology accelerates the composting process and improves compost quality.
Specific Organic Compost Materials as Follows
შედეგად, groove type compost turner has wide applications in many fields. You can use it in organic fertilizer production plants, compost manufacturing facilities, sludge disposal sites, and garden areas. ამიტომ, our trench type composting machines meet your needs for efficient fermentation and moisture removal in compost production processes.

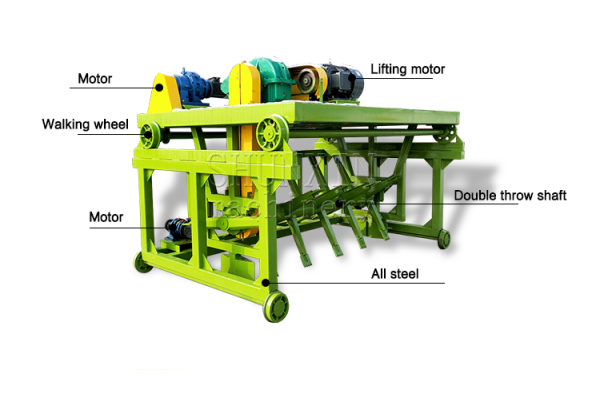

What Is The Structure of a Groove Type Compost Turner Machine?
Common groove type compost turner machine has three primary systems: the driving system, compost turning system, and moving mechanism. Each component is vital for efficient compost production. დამატებით, electricity serves as the main power source.
ჯერ ერთი, the driving system includes a motor, a reducer, sprocket wheels, საკისრები, and a spindle box. This system generates power for the entire machine, ensuring smooth operation of the composting equipment. It is essential for producing the energy needed in the organic compost process.
მეორეც, the compost turning system has two parts: the lifting device and the composting device. The former includes a winding engine, coupling, transmission shaft, and bearings. მეტიც, the latter contains sprocket wheels, paddle blades, a supporting frame, and a turning cylinder. These components work together to turn and aerate the compost effectively.
ბოლოს და ბოლოს, the moving mechanism consists of a motor, transmission gears, transmission shaft, and walking sprocket wheels. This mechanism enables the trench type compost turner to move along rails within the composting groove. It allows for consistent movement and efficient composting techniques.
გარდა ამისა, understanding these components helps you choose the right groove type composting machine for your manufacturing process. Our company offers comprehensive composting machinery solutions for fertilizer production.
How to Turn Organic Waste into Compost by Trench Type Compost Turner?
Converting organic waste into compost is essential for sustainable agriculture. ასევე, groove type compost machines provide an efficient solution. პრაქტიკაში, the working principle of simple groove type compost turner has four steps.
4 Steps to Make Compost by Rail Composting
- 1
ჯერ ერთი, you need to install tracks on the walls of long fermentation grooves. Then the rail type compost equipment can move back and forth along the track on the grooves.
- 2
მეორეც, the motor transmits power directly to the reducer, and then to the turning cylinder by the sprocket wheels. გარდა ამისა, the mixing paddle blades are in spiral distribution.
- 3
ამასობაში, as this compost turning machine walks forward, the rotating paddle blades turn, break, and throw the organic materials backward.
- 4
დამატებით, you may use the groove compost turning machine in conjunction with a transitional machine to move to the next groove. ამიტომ, a single organic compost machine can service multiple grooves.
დასასრულს, the trench type compost turner streamlines the composting process. It enables fertilizer manufacturers to turn organic waste into high-quality compost effectively.
What Is the Price of Groove Type Composting Machine?
ოur factory offers four customizable models of groove type composting machines, with turning widths of 2.5მ, 3მ, 4მ, და 5მ. დამატებით, the default turning depth is 80 cm. გარდა ამისა, our prices range from $6,500 რომ $16,000, including the electric cabinet, cable reel, and displacement car. If you require additional mechanical or hydraulic systems for your composting process, an extra cost of $2,000 რომ $3,000 is needed.
Parameters Table of Rail Type Compost Machinery
| მოდელი | Main Motor (კვტ) | Moving Motor (კვტ) | Lifting Motor (კვტ) | Turning Width (მმ) | Turning Depth (მმ) |
| SXCF-2500 | 15 | 1.5 | 0.75 | 2500 | 800 |
| SXCF-3000 | 18.5 | 1.5 | 0.75 | 3000 | 800 |
| SXCF-4000 | 15*2 | 1.5 | 0.75 | 4000 | 800 |
| SXCF-5000 | 18.5*2 | 1.5 | 0.75 | 5000 | 800 |
Why Choose Our Trench Type Compost Turner Machine for Your Organic Fertilizer Manufacturing Process?
ოur trench type compost turner is the first choice for fertilizer manufacturers seeking efficient organic fertilizer fermentation solutions. Because it offers high output with low energy consumption, making your composting process more economical. უფრო მეტიც, our groove type composting machinery has a stable structure and a low failure rate. ამგვარად, it ensures reliable operation in your organic fertilizer manufacturing process.
Strong Production Capacity
The common trough type compost turning machine can work with parallel multiple grooves. So this design allows you to expand your composting capacity as needed. The single fermentation groove is 3-6 მეტრი width, and the depth is up to 1.5 მეტრი. ამიტომ, it enables you to handle large volumes of composting organic materials efficiently.
High Production Efficiency
მეტიც, our groove type compost turner significantly improves production efficiency because it operates without empty trips or return journeys. ამასობაში, the central control cabinet provides manual and automatic control functions, making it simple to use. ამგვარად, you can monitor the organic composting process in real-time, ოპტიმალური შესრულების უზრუნველყოფა.
Low Energy Consumption
გარდა ამისა, our groove type composter is designed for low energy consumption. Its scientific structure and high degree of automation reduce energy usage while maintaining a reliable compost process. By running on tracks, it saves significant manpower and material resources. Consequently, it decreases labor intensity and lowers manufacturing costs, which saves a lot of money.
Good Fermentation Effect
ამასობაში, we can help you install aeration devices in each fermentation troughs. ასე რომ, they supply oxygen, raise the composting temperature, and reduce moisture while working. გარდა ამისა, this composting machinery efficiently crushes large pieces in the fermenting materials, improving air permeability and ensuring full contact with air. More importantly, it accelerates composting speed and provide uniform mixing, which improve the fermentation effect.
გონივრული სტრუქტურა
უფრო მეტიც, high-quality materials and precise manufacturing give our trough type compost turner a reliable structure. კონკრეტულად, its robust steel frames and alloy steel paddle blades optimize breaking and thorough mixing of compost materials. ასევე, streamlined design with minimal contact parts results in fewer maintenance requirements and a long service life. The advanced welding techniques and precise assembly enhance the overall durability.
In a word, choosing our trench type compost turner machine equips your fertilizer manufacturing process with efficient, reliable, and cost-saving composting technology. By addressing your needs for high output, low energy consumption, and excellent fermentation effects, our equipment stands out as the optimal choice for your organic fertilizer production.
With proven efficiency and a solid structure, trench type compost turners are essential in modern composting systems. They help reduce costs, increase output, and improve compost quality—making them a smart choice for sustainable organic fertilizer production.
With proven efficiency and a solid structure, trench type compost turners are essential in modern composting systems. They help reduce costs, increase output, and improve compost quality—making them a smart choice for sustainable organic fertilizer production.
